Location: Home » Amplifiers » Rockford Fosgate Prime R300-4 300 Watt Multi Channel Amplifier

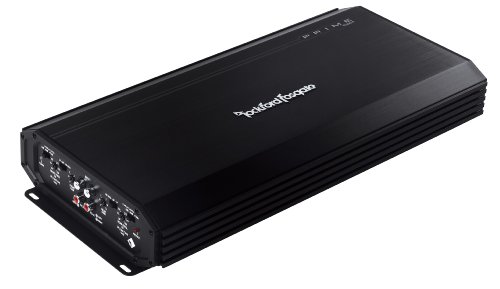

Rockford Fosgate Prime R300-4 300 Watt Multi Channel Amplifier

Brand: Rockford Fosgate
Category: Car Audio or Theater

Buy New: Too low to display
as of 9/10/2010 00:18 EDT details

In Stock

New (3)

Seller: Car Toys
Rating: 5.0 out of 5 stars

1 reviews
Sales Rank: 11,061

Media: Electronics
Shipping Weight (lbs): 0.5
Dimensions (in): 19.9 x 4 x 9.3
nv: Channels: 4 Channel
Classification: Class AB
Dimensions: 2.40" Height x 7.67" Width x 17.09" Depth
Manufacturer: Rockford Fosgate
Manufacturer Part Number: R300-4
Manufacturer Website Address: http://www.rockfordfosgate.com
Marketing Information: Rockford Fosgate amplification at an unbelievable
Maximum Power: 300 W
Product Line: Prime
Product Model: R300-4
Product Name: Prime R300-4 Car Amplifier
Product Type: Car Amplifier
Standard Warranty: 1 Year Limited

MPN: R300-4
Model: R300-4
UPC: 780687328801
EAN: 0080687328802

Availability: Usually ships in 1-2 business days

Features:

•	Four-channel amplifier delivers 75 watts at 2 ohms, 50 watts at 4 ohms, 150 watts at 4 ohms bridged mono
•	Selectable high-pass crossover at 80Hz or variable low pass crossover at 50Hz-250Hz, both with 12dB/octave slope
•	Punch Bass adjustable bass level control of 0dB/+6dB/+12dB centered at 45Hz
•	RCA inputs for signal level input and pass-through jacks for system building
•	The input gain control is preset to match the output of most source units

Rockford Fosgate Prime Series Amplification

A new generation of performance geared toward the "novice" car audio enthusiast or first time buyer. The Prime series amplifiers feature legendary Rockford Fosgate power, controls, and functions while fitting into any budget. Now more than ever, it's easy to get Rockford Fosgate amplifier DNA into your car audio system.

Rockford Fosgate amplification at an unbelievable value.
Click to enlarge.

RCA inputs and pass-through jacks.
Click to enlarge.

R300-4 Features

Power and Protect LEDs
The Protect LED illuminates if a short circuit or to low of an impedance is detected at the speaker connections. The amplifier will automatically shut down if this occurs.

RCA Input Jacks
The industry standard RCA jacks provide an easy connection for signal level input. They are nickel-plated to resist the signal degradation caused by corrosion.

Gain Control
The input gain control is preset to match the output of most source units.

Crossover Switch
Selectable switch for 80Hz High-Pass (HP), All Pass (AP), or Low-Pass (LP) operation.

Variable Crossover (Low Pass Only)
A built-in 12dB/octave Butterworth filter with a crossover point variable from 50Hz to 250Hz.

Punch Bass
The Punch Bass control provides a bass boost up to 12dB @ 45Hz. Adjustable between 0dB, +6dB and +12dB.

R300-4 Specifications

Number of Channels:	4
Rated Power:	50 Watts RMS x 4 @ 4-Ohms 75 Watts RMS x 4 @ 2-Ohms 150 Watts RMS x 2 @ 4-Ohms Bridged/Mon
Total Power:	300 Watts
Dynamic Power:	Front Channels: 62 Watts x 2 @ 4-Ohms 0 degrees Res 98 Watts x 2 @ 2-Ohms 0 degrees Res Front Channels: 61 Watts x 2 @ 4-Ohms 0 degrees Res 89 Watts x 2 @ 2-Ohms 0 degrees Res
Bridgeable:	Yes
Efficiency (average):	59% @ 4-Ohm 49% @ 2-Ohm
Crossover Controls:	Front Channels High-Pass (HP): 80Hz @ 12dB/octave Butterworth Low-Pass (LP): 50Hz-250Hz @ 12dB/octave Butterworth Rear Channels High-Pass (HP): 80Hz @ 12dB/octave Butterworth Low-Pass (LP): 50Hz-250Hz @ 12dB/octave Butterworth
Tone Controls:	Front Channels Punch Bass: 0dB/+6dB/+12dB @ 45Hz Rear Channels Punch Bass: 0dB/+6dB/+12dB @ 45Hz Function works when crossover in (LP) position
Signal Input:	Low Level: 2 RCA pair
Signal Output:	n/a
Power Input Connector:	Screw terminal barrier strip
Power Wire Gauge:	4 AWG
Speaker Output Connector:	Screw terminal barrier strip
Speaker Wire Gauge:	8 AWG
Heat Sink Type:	Extruded aluminum
Cooling:	Convection
Remote Controls:	n/a
Visual Indicators:	Power Protect
Circuit Topology Class:	Class A/B
Frequency Response:	20Hz to 20kHz +/- 1dB
Shipping Weight:	TBA
Dimensions (HxWxL):	2.40 x 7.67 x 17.09 (in) 6.10 x 19.49 x 43.40 (cm)

Thirty Years of Rockford Fosgate

Rockford Fosgate products have been designed and engineered in Tempe, Arizona since the beginning. Rockford's 30 year reputation is grounded in engineering and manufacturing some of the finest audio products in the world. The company's no-compromise approach has yielded patented iconic products such as the Punch EQ, Punch 45 amplifier and the 3Sixty integrated signal processor. Today, Rockford's new products push the performance envelope even further. Each new product is a step forward--they sound bigger, they play louder, and run longer. Rockford never settles for "good enough."

The 2010 product line represents the company's core philosophy. Rockfords new amplifiers, speakers and subwoofers have raised the bar on the competition.

What's in the Box

Rockford Fosgate Prime R300-4 150 Watt Stereo Amplifier, User's Manual

Need More Amp?

Step up to the Punch Series P400-4 or the Power Series T400-4 (both 400-watt multi-channel amps) or check out the many other Rockford options.

Rockford Fosgate Prime Series Amplification


Rockford Fosgate Prime R150-2 150 Watt Stereo Amplifier	Rockford Fosgate Prime R300-4 300 Watt Multi Channel Amplifier	Rockford Fosgate Prime R250-1 250 Watt Mono Amplifier	Rockford Fosgate Prime R500-1 500 Watt Mono Amplifier	Rockford Fosgate Prime R1000-1D 1000 Watt Mono Amplifier

Product Description
Rockford Fosgate amplification at an unbelievable value. The R300-4 4-channel amplifier is so versatile, it will be the only amplifier your system needs. Full-range or component speakers on the front channels & a single R1S410 10" or R1S412 12" woofer bridged/mono on the rear. Consider your system clean, loud & done!. Check out our RFTECH:Woofer WiringWizard to get the most out of your amplifier. * 12dB/octave crossover * 2/4 channel switch * 4 Gauge power/ground connections w/built-in ATC fusing * MOSFET output stage * MOSFET power supply * RCA pass-thru * Number of Channels 4 * Rated Power * continuous power 50 Watts RMS x 4 @ 4-Ohms * 75 Watts RMS x 4 @ 2-Ohms * 150 Watts RMS x 2 @ 4-Ohms Bridged/Mono * Total Power * total sum of 'rated power' 300 Watts * Dynamic Power * powercube measurement (info) Front Channels: * 62 Watts x 2 @ 4-Ohms 0 Res * 98 Watts x 2 @ 2-Ohms 0 Res * * Front Channels: * 61 Watts x 2 @ 4-Ohms 0 Res * 89 Watts x 2 @ 2-Ohms 0 Res * Bridgeable Yes * Efficiency (average) 59% @ 4-Ohm * 49% @ 2-Ohm * Crossover Controls Front Channels * High-Pass (HP): 80Hz @ 12dB/octave Butterworth * Low-Pass (LP): 50Hz-250Hz @ 12dB/octave Butterworth * * Rear Channels * High-Pass (HP): 80Hz @ 12dB/octave Butterworth * Low-Pass (LP): 50Hz-250Hz @ 12dB/octave Butterworth * Tone Controls Front Channels * Punch Bass: 0dB/+6dB/+12dB @ 45Hz * * Rear Channels * Punch Bass: 0dB/+6dB/+12dB @ 45Hz * * Function works when crossover in (LP) position * Signal Input Low Level: 2 RCA pair * Signal Output n/a * Power Input Connector Screw terminal barrier strip * Power Wire Gauge 4 AWG * Speaker Output Connector Screw terminal barrier strip * Speaker Wire Gauge 8 AWG * Heat Sink Type Extruded Aluminum * Cooling Convection * Remote Controls n/a * Visual Indicators Power * Protect * Circuit Topology Class Class A/B * Frequency Response 20Hz to 20kHz +/-1dB * Shipping Weight TBA Lbs. (TBA

Customer Reviews:
5 out of 5 stars

outstanding quality for the price June 25, 2009
Martin Rojas Hacker (Providence, RI USA)
2 out of 2 found this review helpful

Don't waste your time looking for other brands. If you want the best quality and power for your car audio system, get ROCKFORD. I replaced my 600W sony 4 channel amplifier for this one, and let me tell you, there is no comparison. I connected 2 120 W sony speakers and bridged a 400 W Sony Subwoofer...the sound from the speaker is loud and clear (similar to what I was getting from the Sony amplifier)...But the sound that I'm getting from the subwoofer is just amazing - and its only halfway of the power (the whole car shakes when on)...I strongly recommend this product and wont never go back to brands like sony or pioneer for amplifiers
